The A1000 Bypass Regulators were designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carbureted application. These regulators are perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13224 provides (4) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.

Specifications:

Description_ASC	A1000 carbureted bypass regulator; adjustable from 3-15 PSI; perfect for naturally aspirated engines; bypass desing provides the ultimate, dynamic fuel delivery system.
Description_DEF	Fuel Pressure Regulator
Description_DES	A1000, 4-Port Carbureted Bypass Regulator
Description_EXT	A1000 4-Port Carbureted Bypass Regulator, 4 x AN-06, 1 x AN-10.
Description_INV	Aeromotive Regulator
Description_MKT	The A1000 Bypass Regulators were designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carbureted application. These regulators are perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13224 provides (4) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.
Description_SHO	Regulator
height	275.0
length	55.0
LTL	N
Outlet Port Diameter	0.375
Port Quantity	5
Prop 65 (C, R or CR)	CR
Prop 65 - Long Label	WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
Prop 65 - Short Label	P65_Warning_Chromium.jpg
Prop 65 Flag	Yes

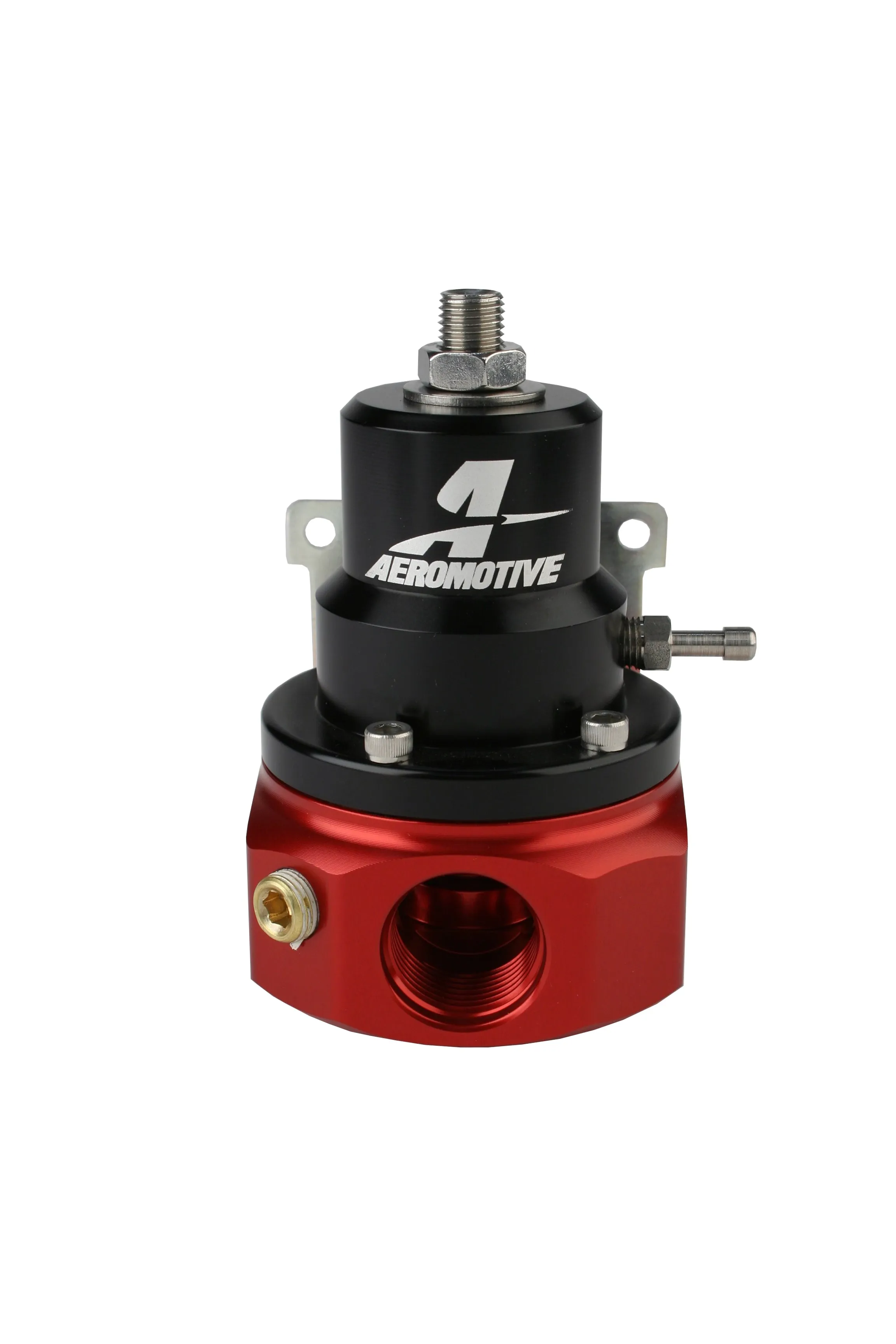

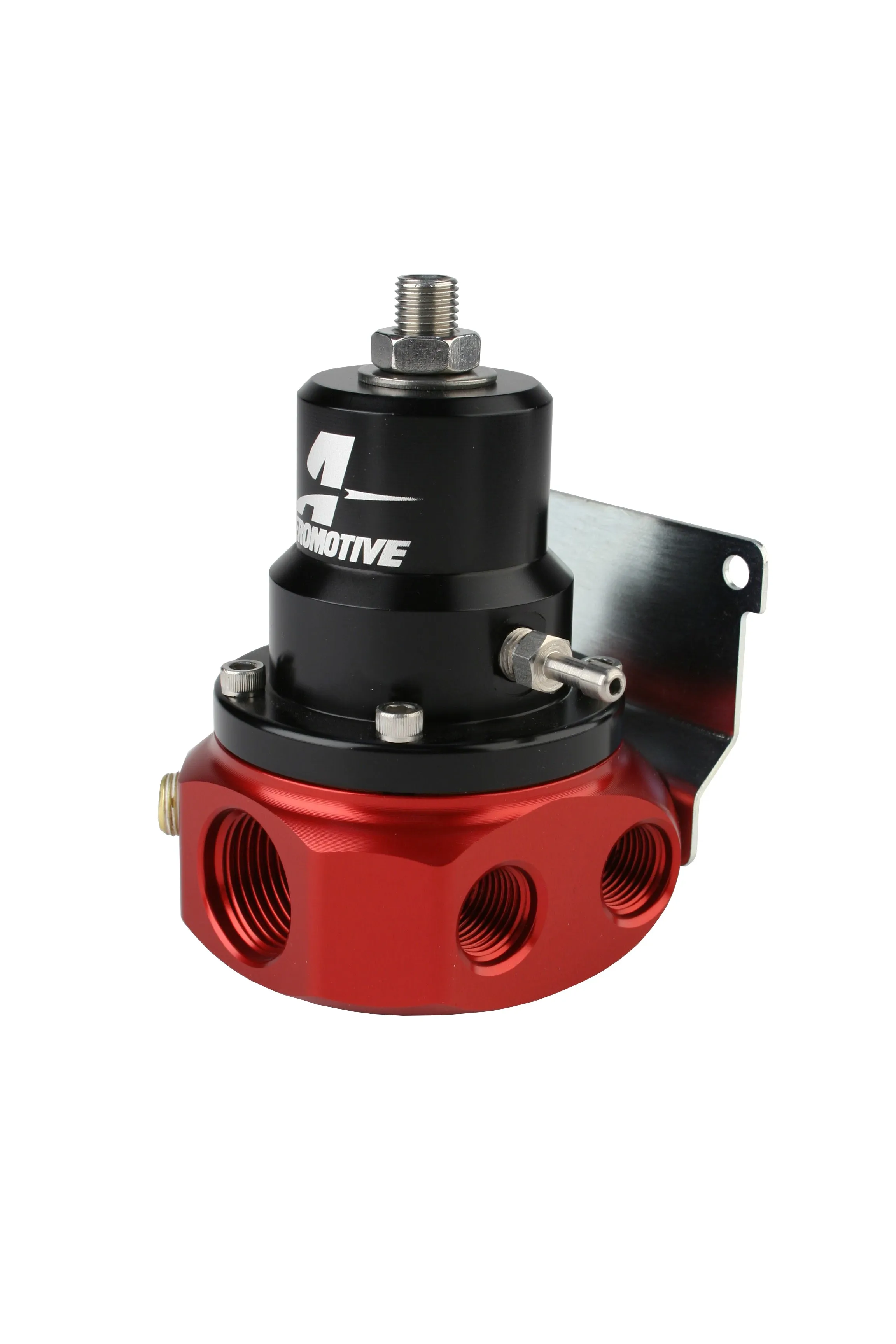

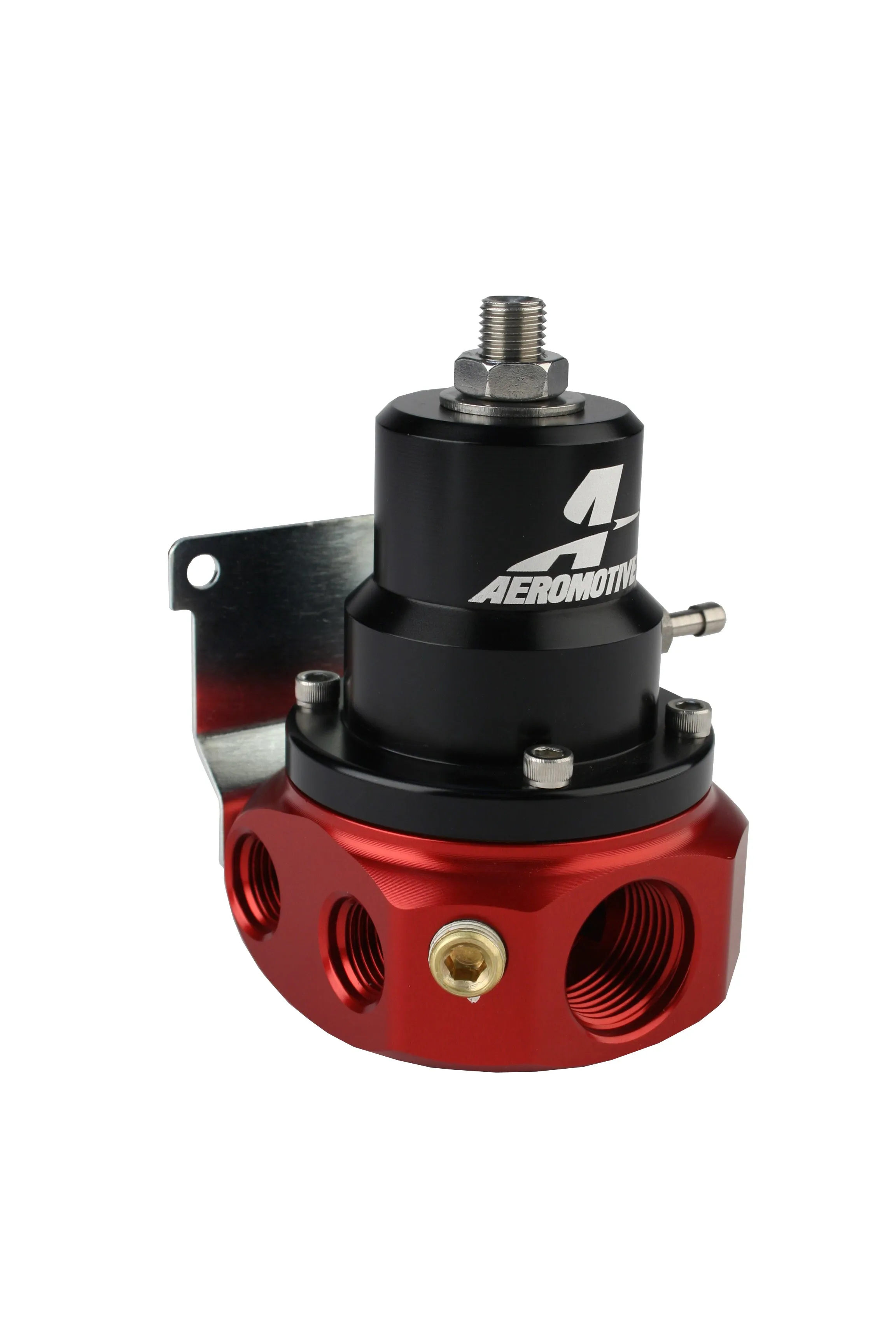

Title	Aeromotive A1000, 4-Port Carbureted Bypass Regulator
weight	13.0
width	55.0
