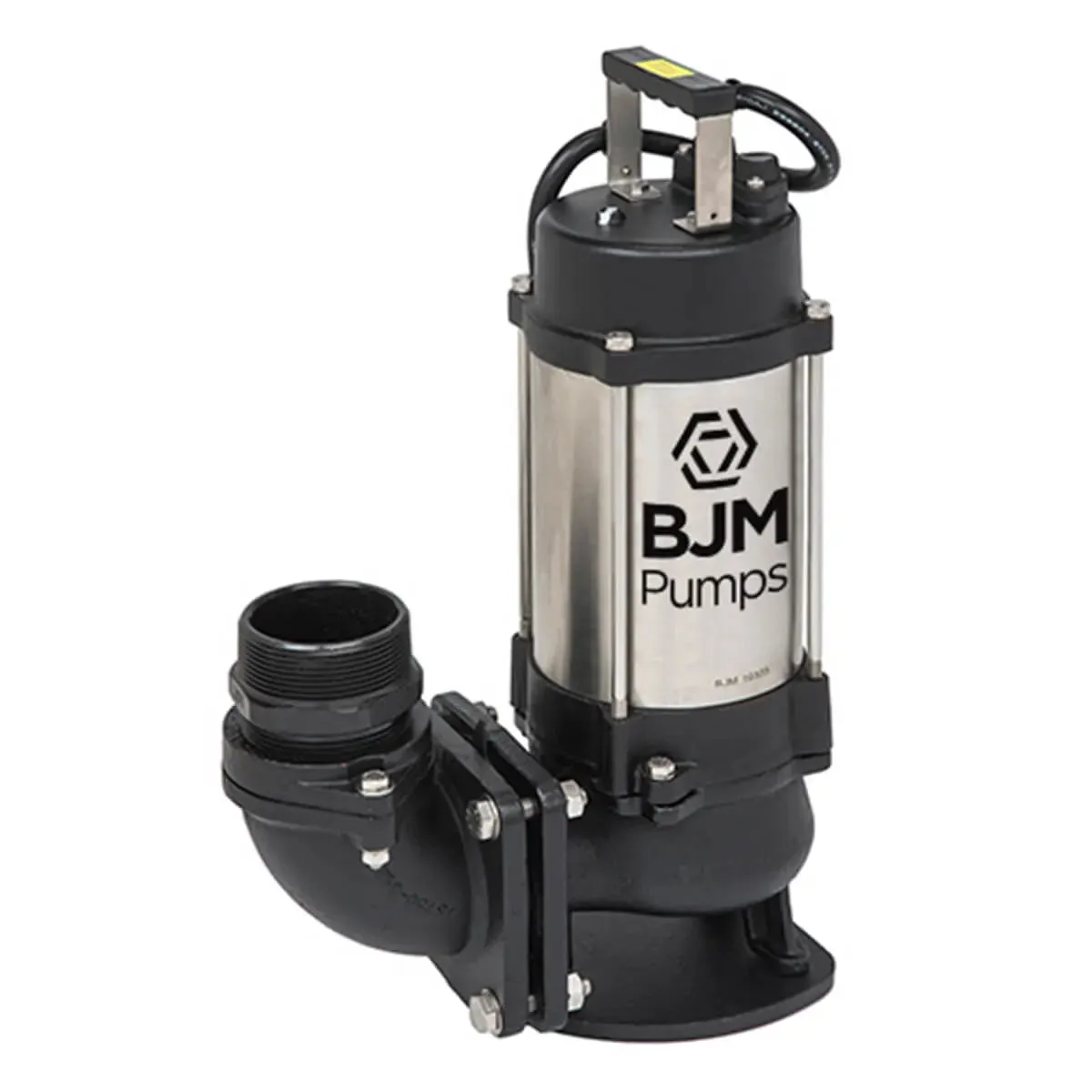

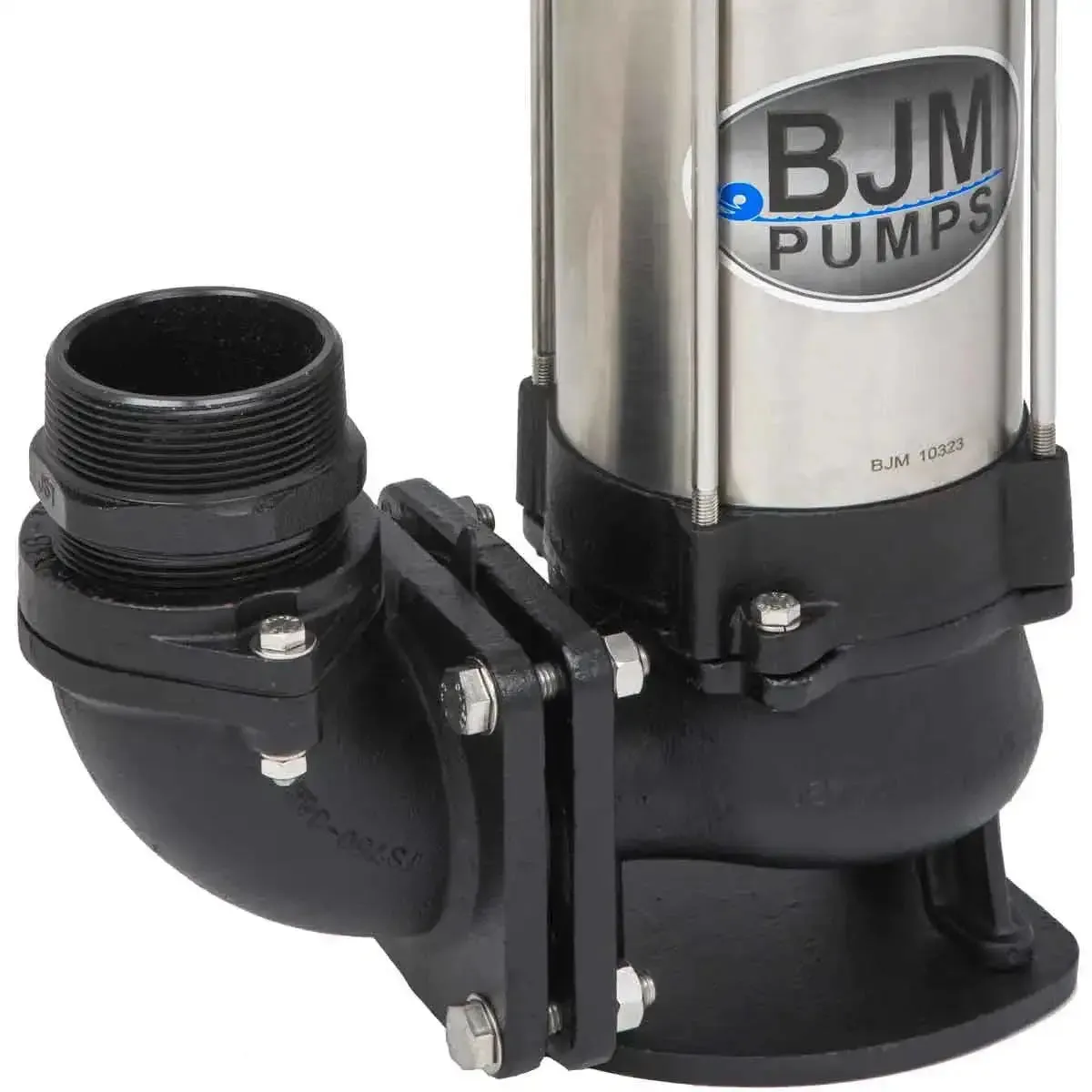

BJM SV750-115 Vortex Trash 3" Submersible Pump
The SV-Series pumps have Vortex impellers, the best non-clog impellers ever invented for handling mud, raw sewage, viscous liquids, rags, wood chips, and other solids. They pass solids of up to 90% of the pump outlet diameter.
Features
- Recessed vortex impeller pumps for passing large solids found in sewage and industrial waste
- SV pumps are designed to pass mud, raw sewage, leaves, rags, wood chips, and other solids without clogging

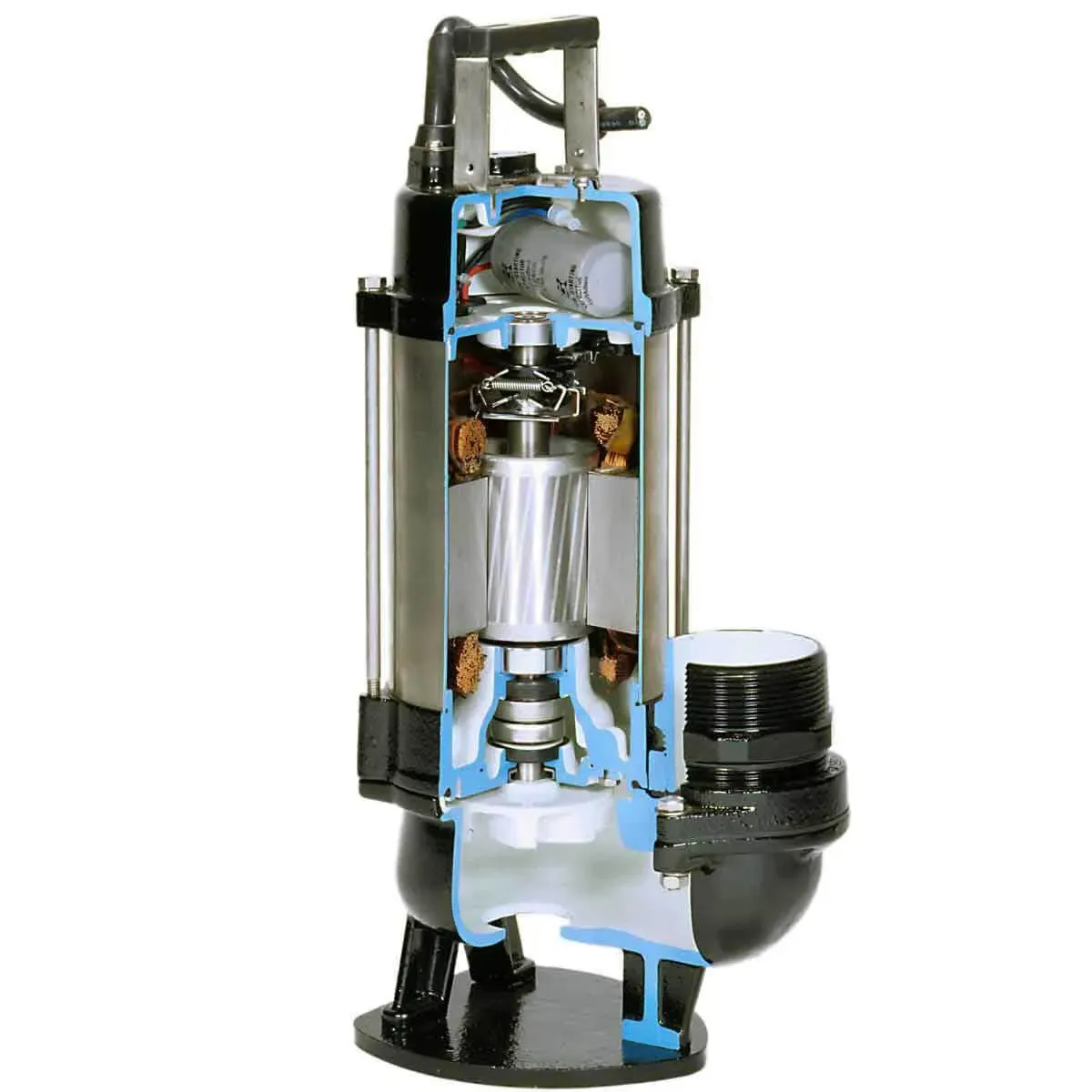

- Constructed with a cast iron volute and fully recessed impeller for pumping solids without clogging
- Rugged construction (no breakable plastic component) and lightweight for portability
- Lip Seal and double mechanical seals
- Lower seal is silicon carbide/silicon carbide, and upper seal is carbon/ceramic
- Built in high-temperature automatic overload switch and class F motor insulation protects against motor failure due to overheating
- 1 HP, 115 Volts, single phase, 14 Full Load Amp
- Max Solids 2"
| SV750-115 Specifications | |
| MAX. FLOW: GPM | 100 gpm |
| MAX. HEAD: ft | 31 ft |
| PUMP TYPE | Elect.Submersible, Non-Clog Vortex |
| DISCHARGE CONNECTION | 3" NPT-M |
| SHIPPING WEIGHT: lbs. | 80 lbs. |
| MECHANICAL SEAL UPPER | Crb / Cer |
| MECHANICAL SEAL LOWER | Sic / Sic |
| MOTOR CASING | 304 SS |
| PUMP VOLUTE | Cast Iron |
| IMPELLER-MULTI VANE | Cast Iron |
| LIPSEAL and O-RINGS | Buna-N |
| ROTOR SHAFT | 304 SS |
| EXTERNAL HARDWARE | 304 SS |
| QTY. OIL IN SEAL CHAMBER | 9.3 U.S. fl. oz. |
| Motor Data | |
| MOTOR RATING: HP | 1 |
| MOTOR RPM | 3450 Rpm |
| MOTOR INSULATION CLASS | F |
| MOTOR SERVICE FACTOR | 1.1 |
| VOLTAGE | 115V, 1ph-60Hz |
| CURRENT Full Load Amps. | 14 Amps |
| MOTOR PROTECTION | Thermal breaker and Amp. O.L. |
| POWER CORD GAGE and LENGTH | 14/3, 33 ft |
| MAXIMUM LIQUID TEMPERATURE | 104 F |
