Product Details
＋

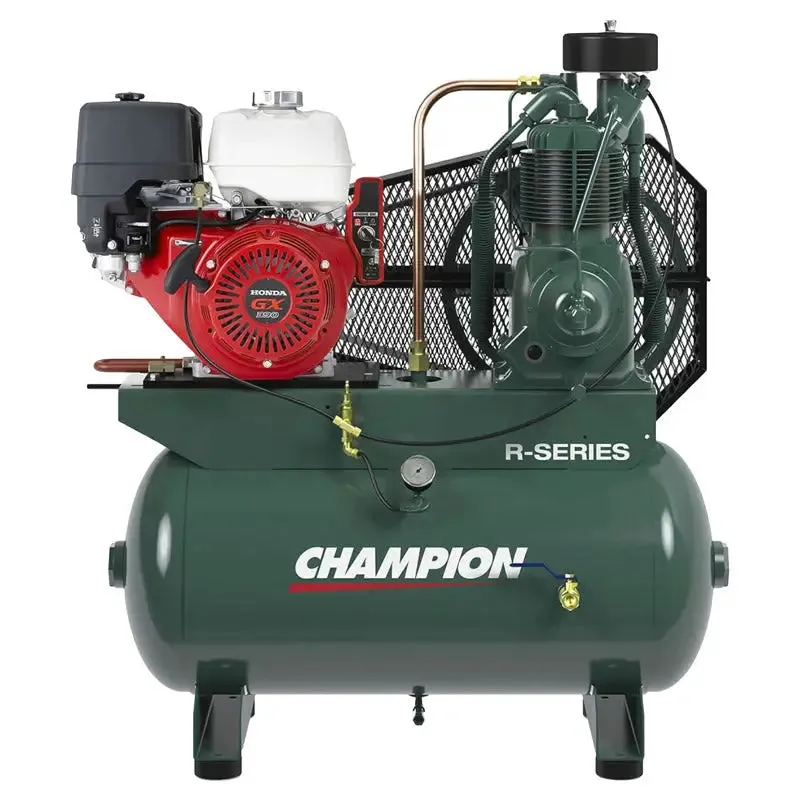

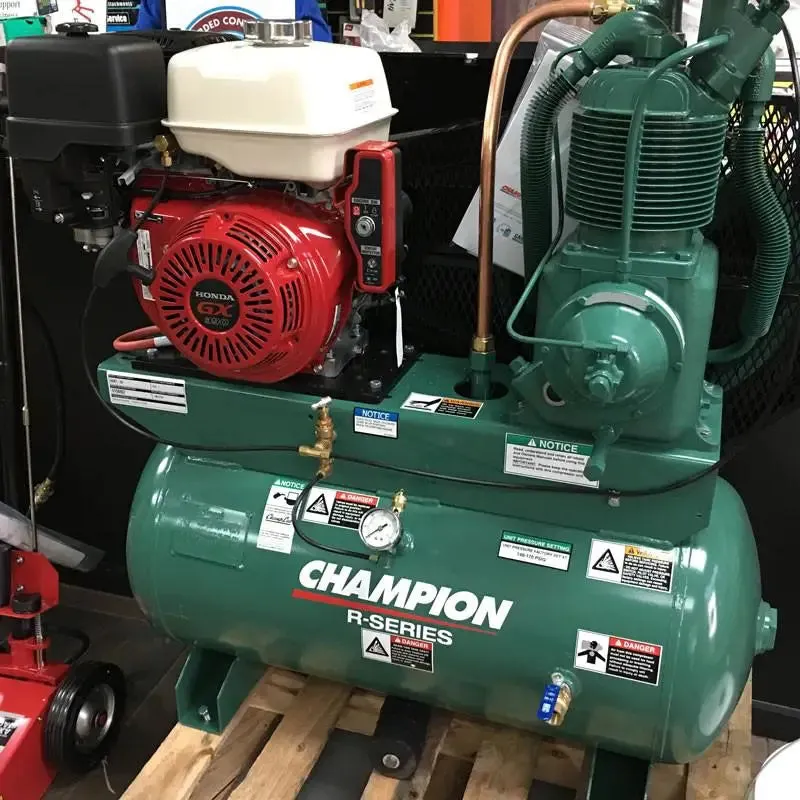

Champion R-Series R2-30A, 13 HP Splash lubricated Engine / Gas Driven Simplex Horizontal Air Compressor. R-Series Compressors are loaded with features designed for high performance and tremendous value.
Features:
- All engines come standard with an electric key start switch
- R Series compressor pump
- All pumps come standard with head unloaders for constant load/no-load operation.
- ASME coded receiver / EXCEPT Base Mount and Low Profile tank models
- Intake Filter / Silencer
- Enclosed Belt Guard
- Vibration Isolators
- Tank-mounted units have a pilot valve with a toggle for loadless starting wi.
Specs:
Configuration: SimplexModel Number: HGR7-3H
Tank Configuration: Horizontal
Tank Configuration: Horizontal
Tank Size: Gallons (liters): 30 / 114
Pump Model: R15
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 23.2 / 39.4
Engine HP: 13
Engine Model: Honda GX390
Vibration Isolators: Std
California Code: Yes
Shipping Dimensions: 48 x 25 x 53 in.
Pump Model: R15
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 23.2 / 39.4
Engine HP: 13
Engine Model: Honda GX390
Vibration Isolators: Std
California Code: Yes
Shipping Dimensions: 48 x 25 x 53 in.
Est. Shipping Weight: 485 lbs.
