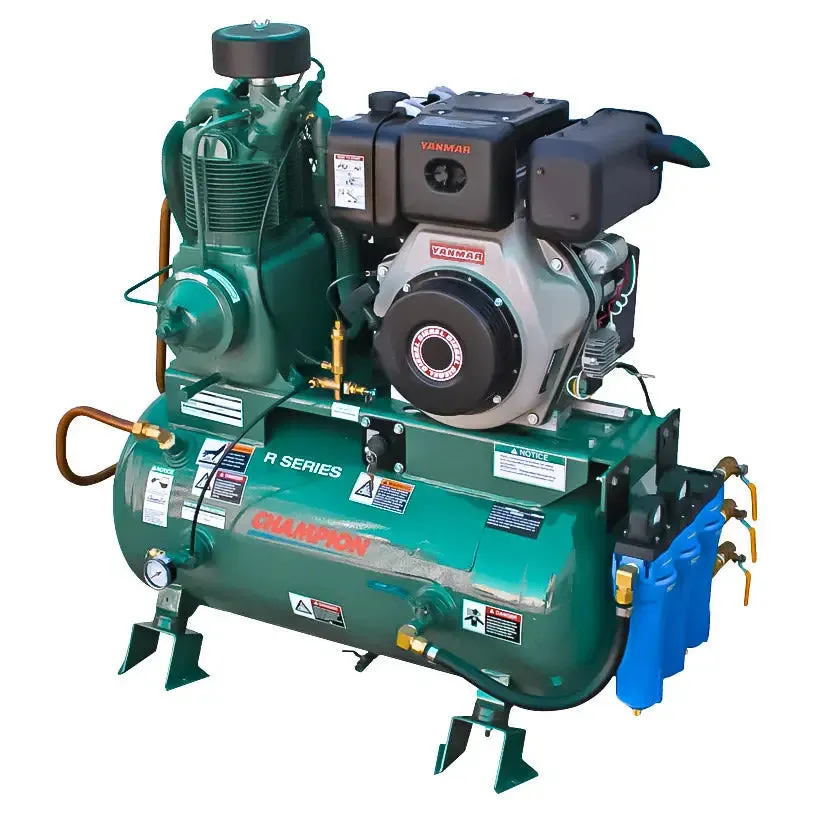

Name: Champion HDR5-3Y R Series 9.3 HP Yanmar Diesel Air Compressor
SKU: 727685

Product Details ＋

Champion R-Series R2-30A, 9.3 HP Yanmar Diesel Engine Driven, Horizontal Air Compressor. R-Series Compressors are loaded with features designed for high performance and tremendous value.

Features:

All engines come standard with the electric key start switch
R Series compressor pump
All pumps come standard with head unloaders for constant load/no load operation.
ASME coded receiver / EXCEPT Base Mount and Low Profile tank models
Intake Filter / Silencer
Enclosed Belt Guard
Vibration Isolators
Tank-mounted units have a pilot valve with a toggle for loadless starting wi

Specs:

Product Configuration: Simplex
Pump Model: R15
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 21.7 / 36.9
Engine HP: 9.3 HP
Engine Model: Yanmar L100W
Tank Configuration: Horiz
Vibration Isolators: Std
Tank Size: : 30 Gal
Est. Weight:: 570 lbs
California Code: Yes
