Product Details
＋

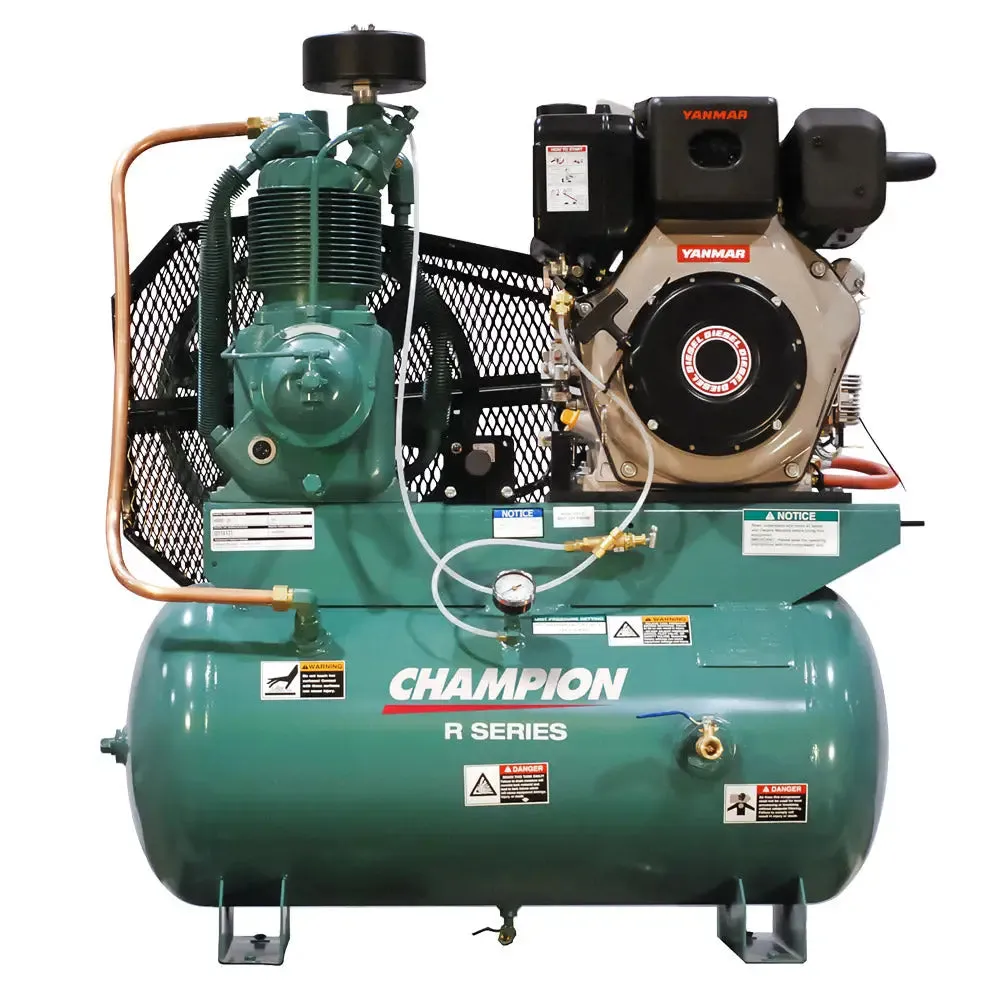

Champion Model HDR5-8Y R-Series R2-30A, 9.3 HP Yanmar Diesel Engine Driven, Horizontal Air Compressor. R-Series Compressors are loaded with features designed for high performance and tremendous value.
Features:
- All engines come standard with the electric key start switch
- R Series compressor pump
- All pumps come standard with head unloaders for constant load/no load operation.
- ASME coded receiver / EXCEPT Base Mount and Low Profile tank models
- Intake Filter / Silencer
- Enclosed Belt Guard
- Vibration Isolators
- Tank-mounted units have a pilot valve with a toggle for loadless starting wi
Specs:
Product Configuration: SimplexPump Model: R15
ACFM @ 175 PSIG (m3/hr @ 10 BAR): 21.7 / 36.9
Engine HP: 9.3 HP
Engine Model: Yanmar L100W
Tank Configuration: Horiz
Vibration Isolators: Std
Tank Size: : 80 Gal
Est. Weight:: 680 lbs
California Code: No
