Product Details
＋

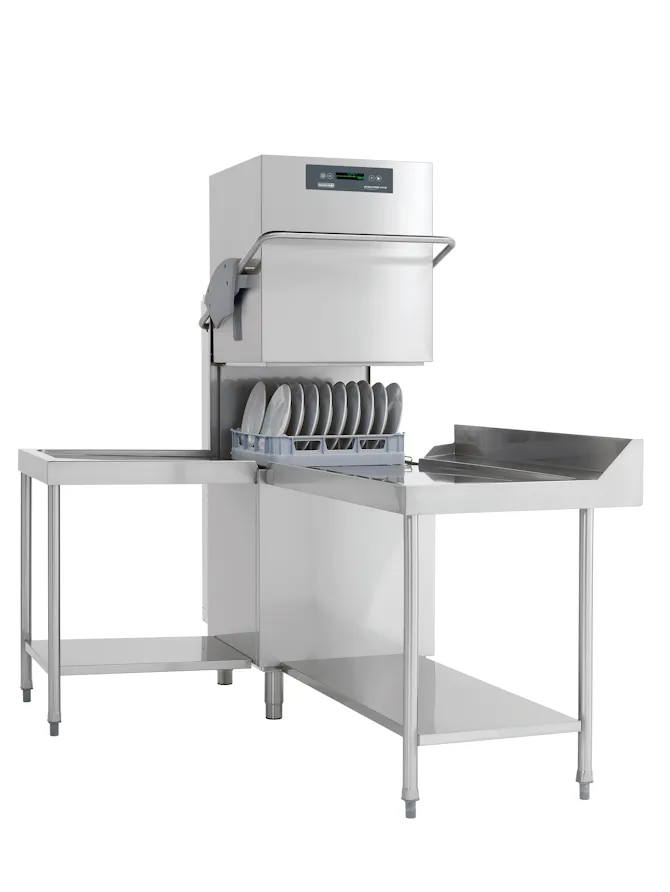

Maidaid Evolution EVO2135WS Pass Through Dishwasher 500mm basket
Introducing the Maidaid EVO2135WS Pass Through Dishwasher! With a built-in softener, fitted drain pump and breaktank, and a maximum useable height of 440mm, this dishwasher offers convenience and efficiency. Customizable cycle times and adjustable height make it suitable for any site. Experience the power of 4.7/6.7kW and 20/30 Amps.
- 2 year warranty
- Polychromatic LCD display and user interface giving uncomplicated machine status updates
- Four button control fascia with special programmes button, operational self-diagnostics & alarms menu
- Improved wash action from quick release parallel wash & rinse arm design
- Stainless steel scrap tray filters supplied as standard
- Improved triple wash tank filtration
- Increased range of water hardness settings
- Internal continuous water softener as standard
- Drain pump & breaktank supplied as standard
- Three standard cycle options with an extensive range of special cycles
- Cycle times can be tailored to site requirements
- Reduced water consumption
- Comprehensive automatic self cleaning at end of service
- Selectable energy saving mode
- Selectable thermostop ensures optimum rinse temperatures
- Fully double skinned body & hood construction minimising both acoustic output and reduced heat-loss
- Easy super slide hood system
- Patented dual flow wash pump - reducing power consumption whilst retaining wash efficiency
- Moulded wash tank for easy cleaning
- Accurate detergent and rinse aid peristaltic dosing pumps as standard
- Supplied with one pegged rack, one open cup/glass rack & cutlery insert
| Evo Range Hood | EVO2135WS |
|---|---|
| Width x Depth x Height mm | 640 x 755 x 1535mm (inc feet) |
| Feet Height | 165mm to 225mm |
| Basket size | 500 x 500mm |
| Maximum useable height | 440mm |
| Door Opening | 460mm |
| Cycle times | 70/90/120 Seconds |
| Water consumption per cycle | 2.0 Litres |
| Wash tank capacity | 22 Litres |
| Phase - Options | Single/3-Phase |
| Power – Single Phase Options | 4.7kW(20Amp),6.7kW(30Amp) |
| Power – Three Phase | 6.7kW(16Amp) |
| Detergent pump | Peristaltic - Non Timed |
| Rinse aid pump | Peristaltic - Non Timed |
| Drain pump | Yes |
| Breaktank | Yes |
| Water supply pressure | 2 to 4 Bar |
| Body Construction | Double skin |
| Door/Hood Construction | Double skin |
| Scrap Trays | Yes |
| Internal Rinse Booster Pump | Yes |
| Number Of Cycles | 3 |
| Total Maximum Load(as supplied) | 6.7kW(30A) – Single Phase |
