Product Details
＋

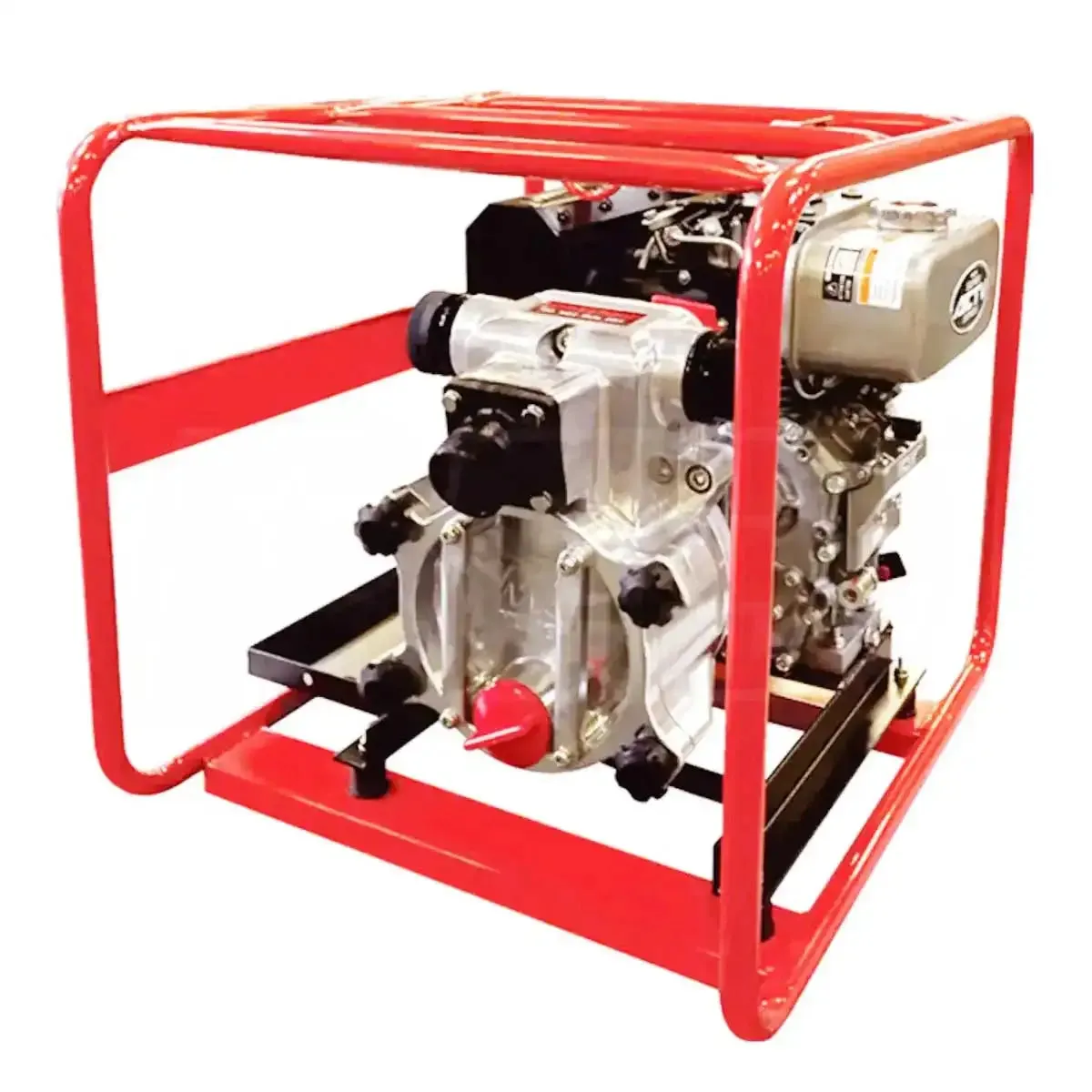

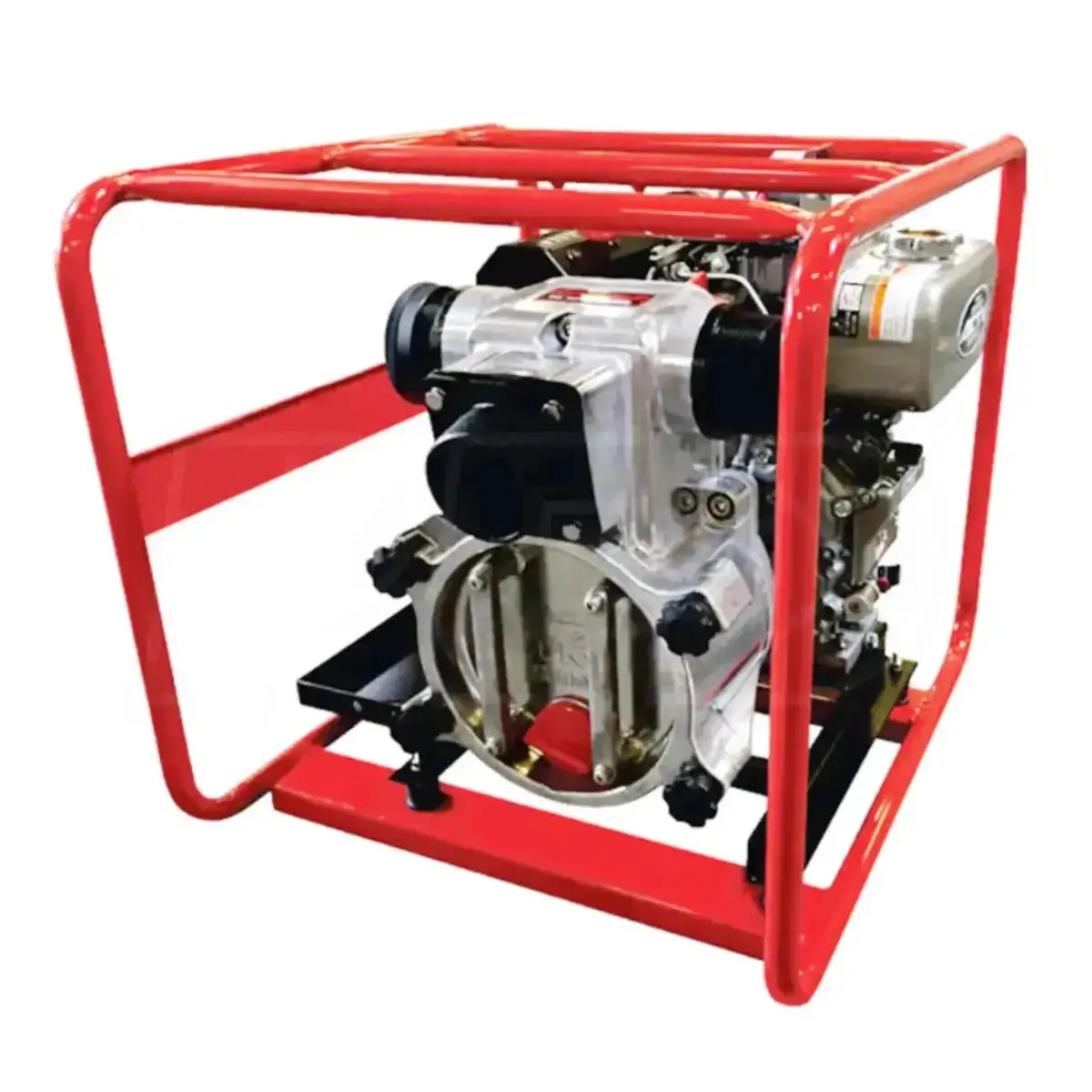

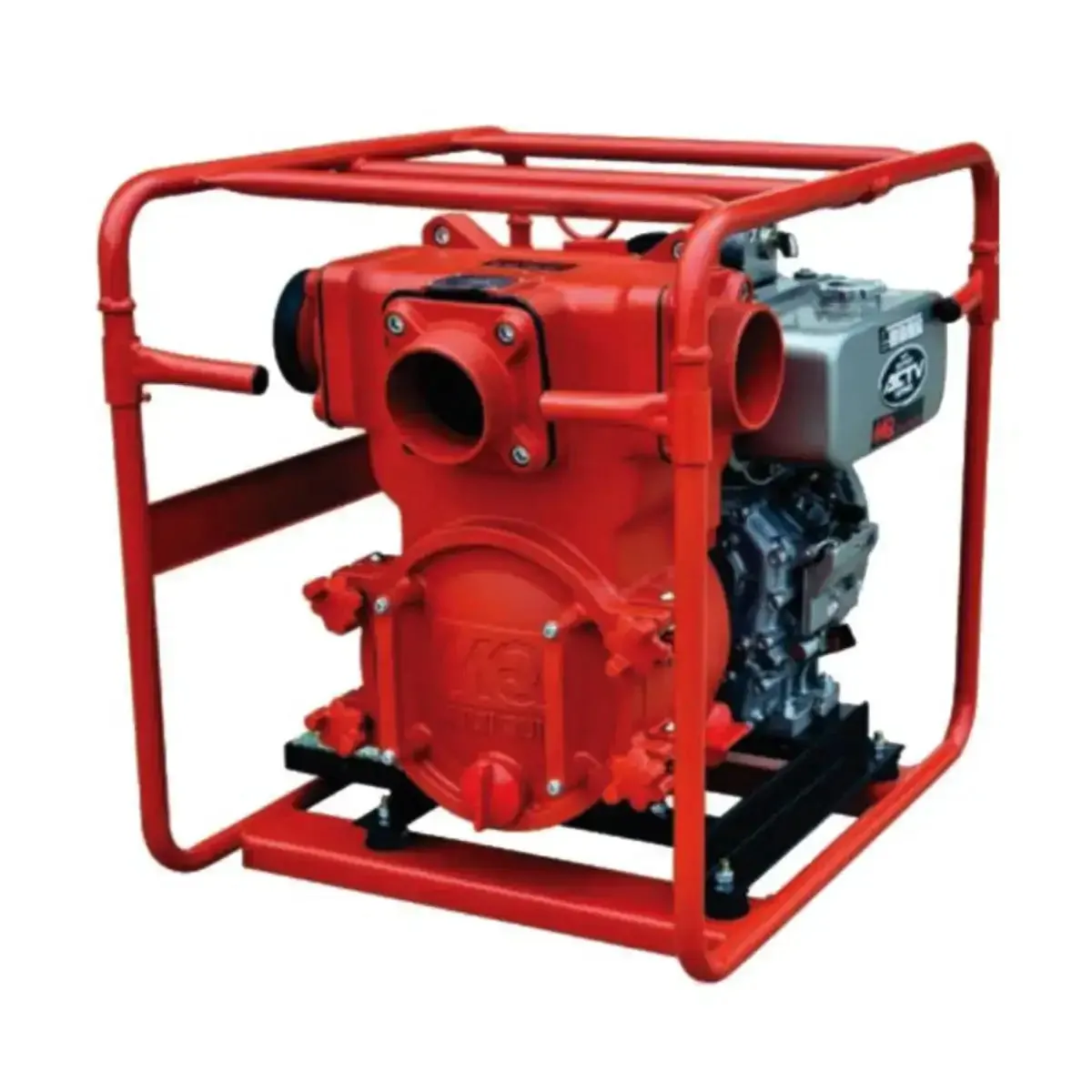

Multiquip Diesel Trash Pumps
The Multiquip Trash Pumps are engineered to meet the requirements of professional contractors. Rugged and dependable, they are ideal for de-watering applications with high solid content. Sticks, stones and debris easily pass through the pump, minimizing downtime due to clogging.
Features
- Rugged and dependable, they are ideal for de-watering applications with high solid content
- Sticks, stones and debris easily pass through the pump, minimizing downtime due to clogging
- Open-type two vane impeller handles solids and debris
- Unique dual discharge ports for versatility in application
- Silicon/carbon mechanical seal for durability
- Cast iron suction and discharge nipples are durable and easily replaced if threads are damaged
- Ideal for smaller jobs with solids up to 2 inch (51 mm)
- 85 foot maximum head (26 meters), Max lift 25 ft. (7.6m)
| Multiquip Diesel Trash Pumps | |||
| Model | QP2TK | QP3TK | QP4TK |
| Motor | Kubota OC-60-E4 | Kubota OC-60-E4 | Kubota OC-95-E4 |
| Power | 6.0 HP | 6.0 HP | 9.5 HP |
| Operating RPM | 3600 RPM | 3600 RPM | 3600 RPM |
| Water Capacity | 172 gpm | 325 gpm | 475 gpm |
| Outlet Size | 2 in | 3 in | 4 in |
| Inlet Size | 2 in | 3 in | 4 in |
| Max Solids | 1 in | 1.5 in | 2 in |
| Max Head | 85 ft | 85 ft | 85 ft |
| Fuel capacity | 1.4 Gal | .95 Gal | 1.45 Gal |
| Max. Pressure | 37.7 psi | 37.7 psi | 37.7 psi |
| Starting method | Electric | Electric | Electric |
| Weight | 157 lbs | 176 lbs | 286 lbs |
