Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Current Rating | 1.5 A |
| Depth, Overall | 5.213" (132.4mm) |
| Dimensions, Overall | 5.213 x 7.441 x 4.331" (132.4 x 189 x 110mm) |
| Driver Type | Adjustable Frequency |
| For Use With | 3-Phase Motors |
| Frequency | 0.5 to 400 Hz |
| Frequency, Output | 0.5 to 400 Hz |
| Function | Motor Control |
| Horsepower Rating | 0.5 HP |
| Length, Overall | 7.441" (189mm) |
| Motor Power Rating | 0.4 kW |
| Mounting Type | Panel Mount |
| Phase | Three-Phase |
| Power Rating | 0.4 kW |
| Primary Type | AC Drive |
| Series | |
| Special Features | Control Panel ; Emergency Shutoff Function, PID Function |
| Standards | EN 61800-3: 2004, EN 61800-5-1: 2003, UL, UL508C, cUL |
| Supply Voltage | 480 VAC |
| Temperature, Ambient | -10 to 50 °C |
| Type | Adjustable Frequency |
| Width, Overall | 4.331" (110mm) |
Overview

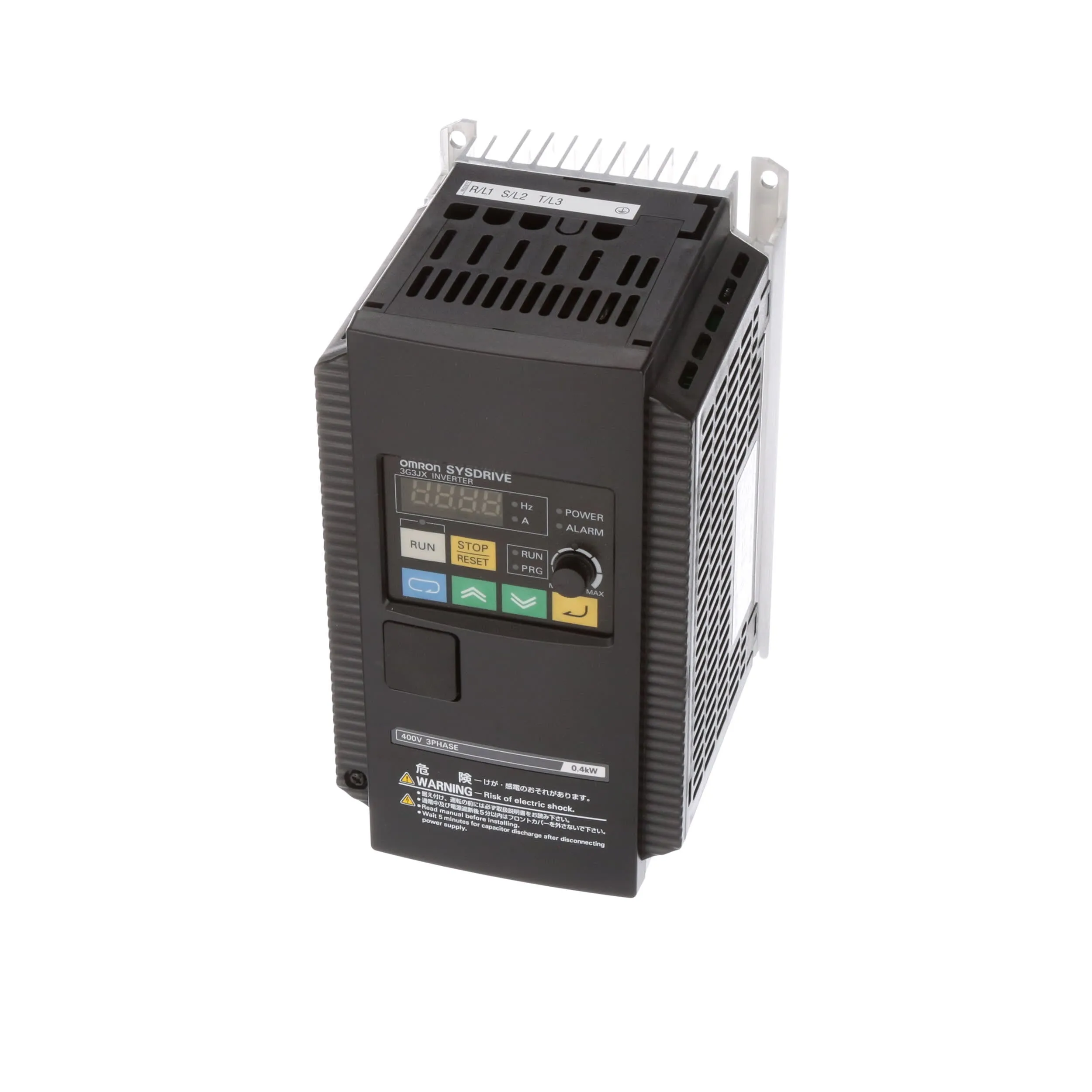

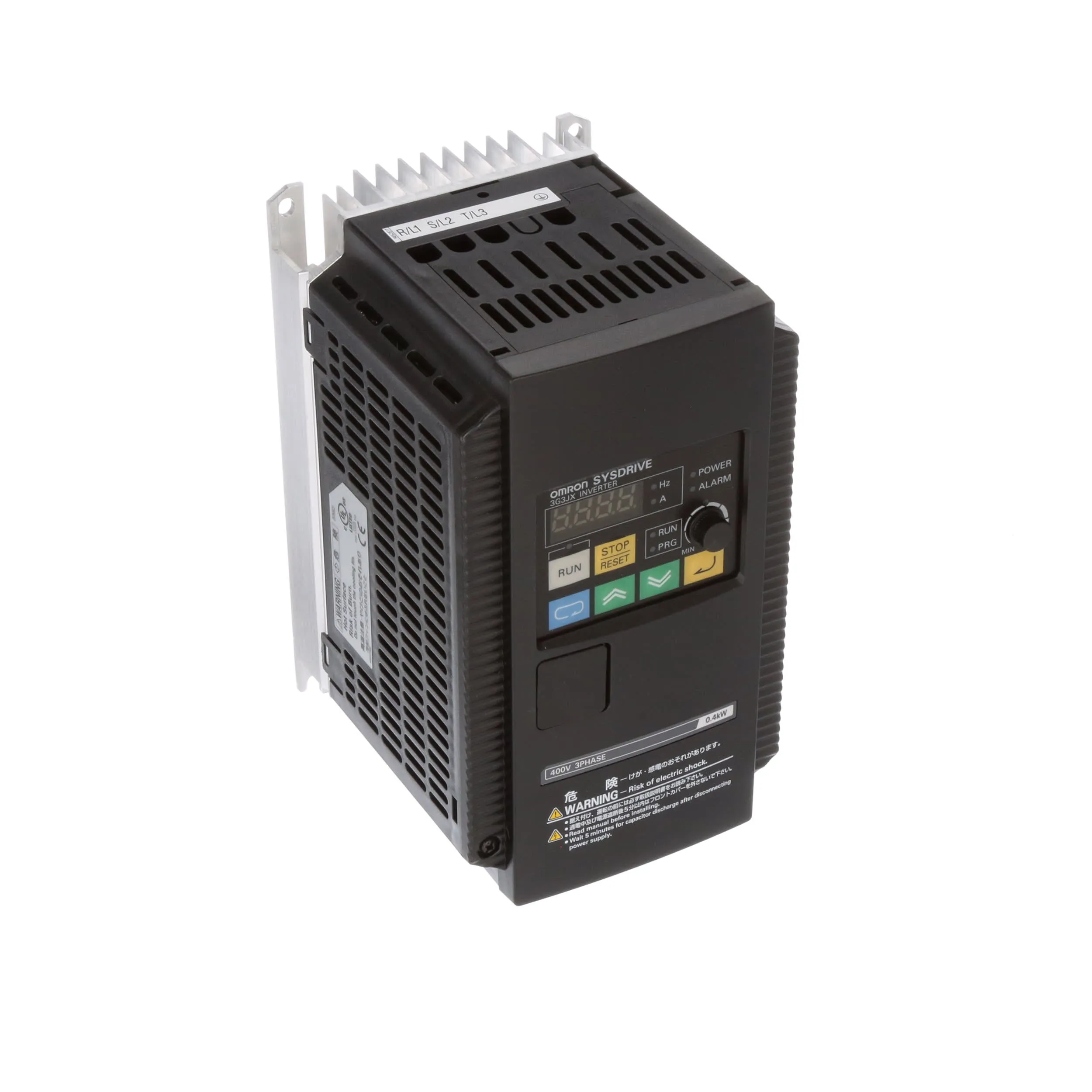

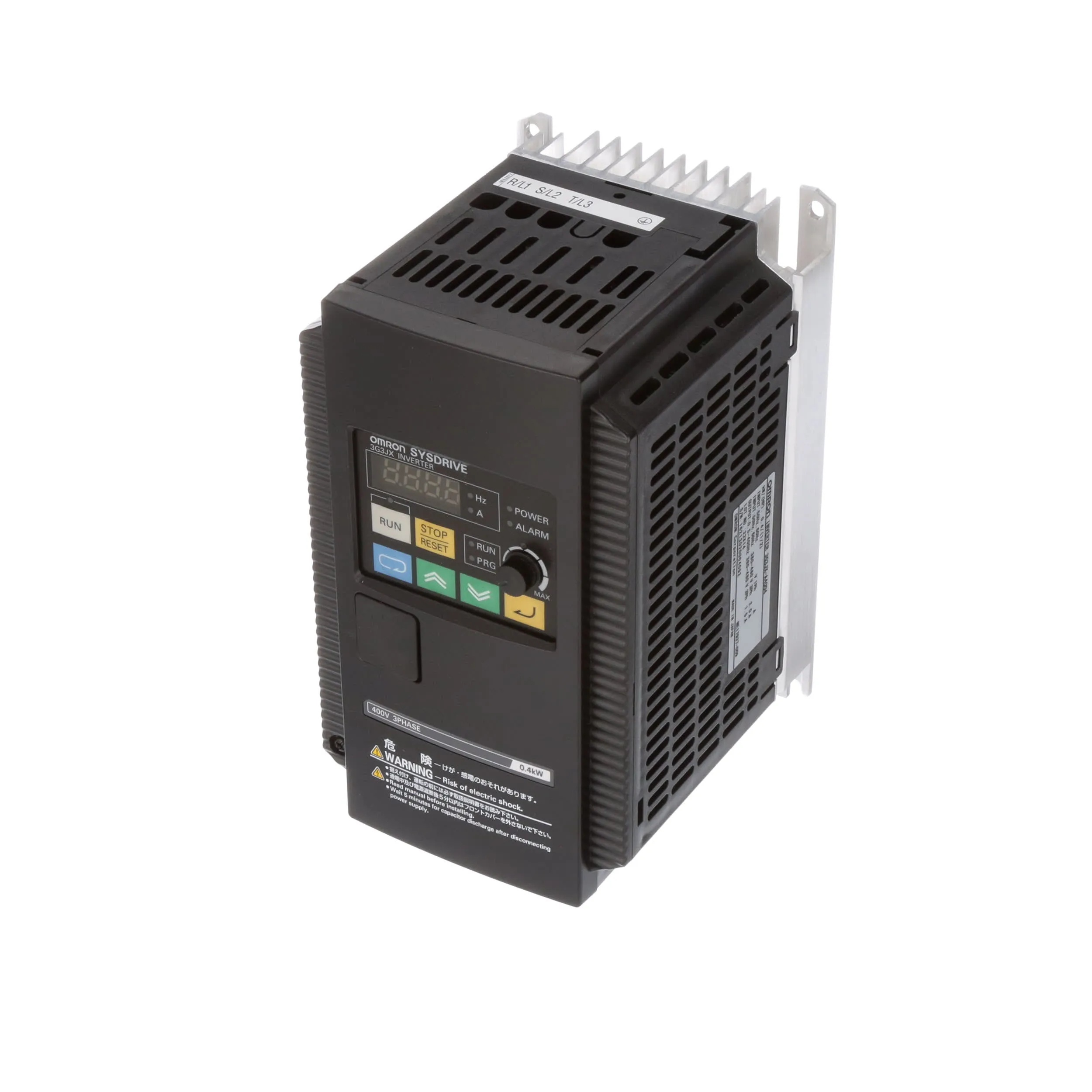

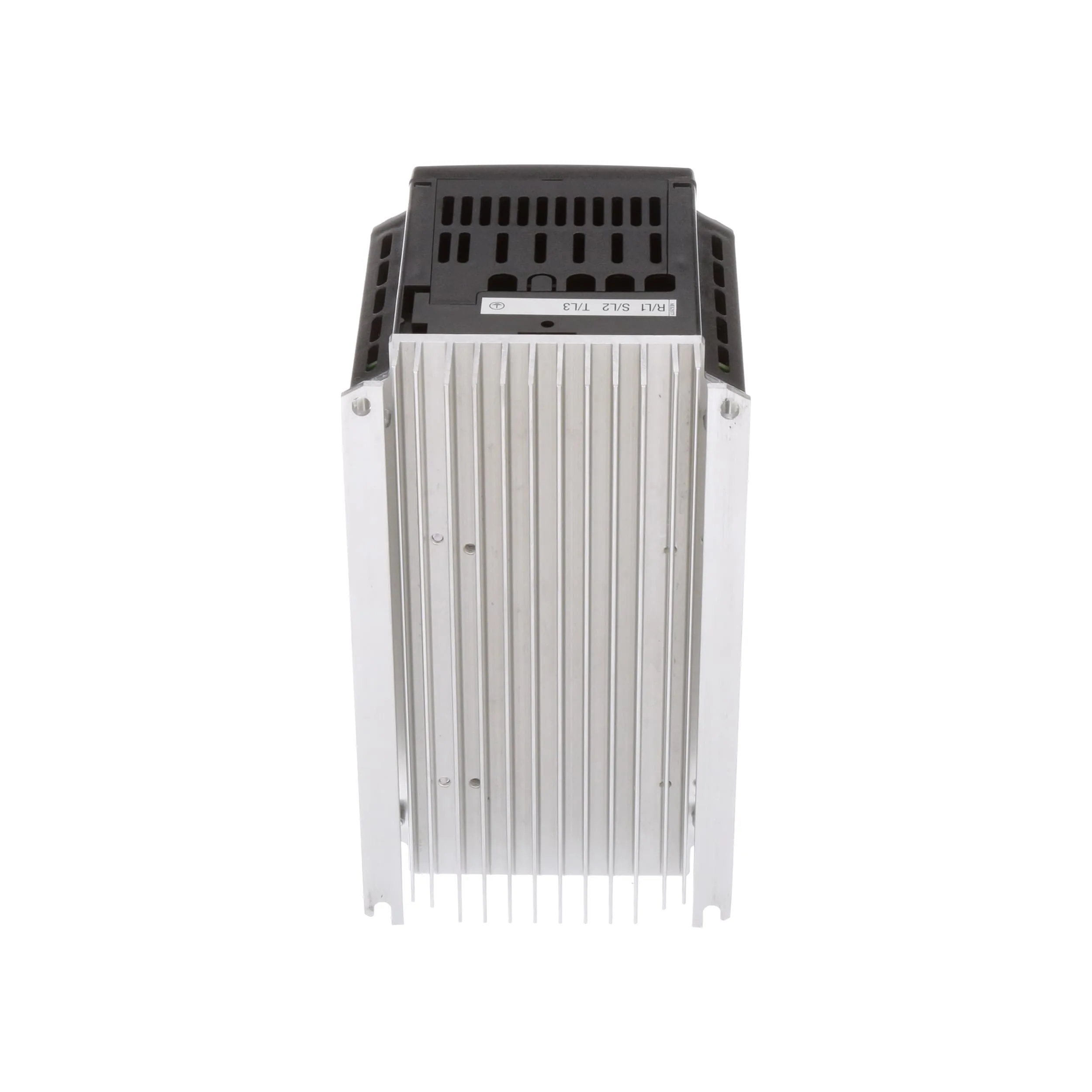

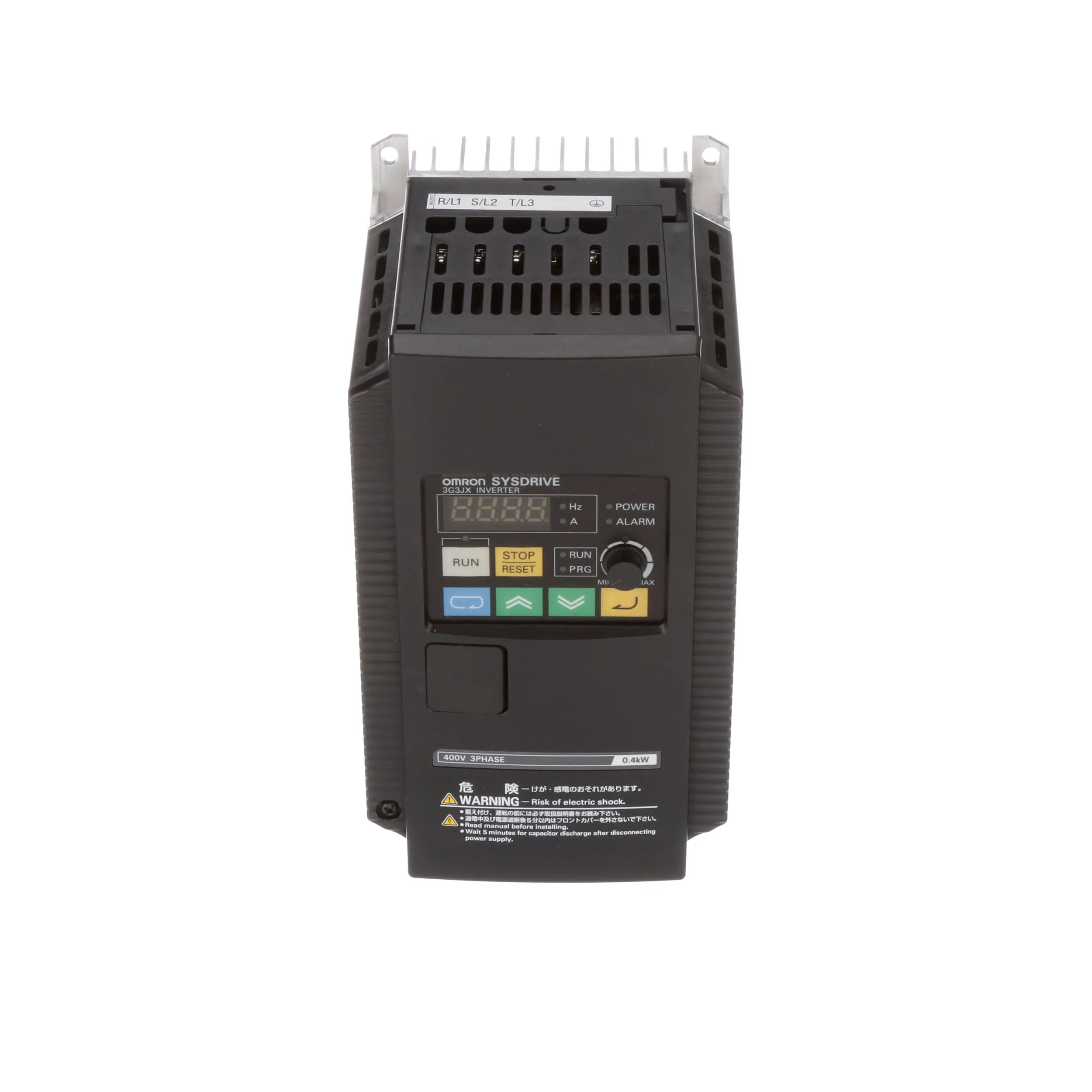

With Omron's new 3G3JX Series AC drive, manufacturers have the features, capacity and ease of use to succeed in the low horsepower market. This environmentally friendly product is available in single- and three-phase 240 V and three-phase 480 V models, up to ten horsepower. The PWM algorithm employed by the 3G3JX utilizes micro-surge voltage suppression that allows it to be used with motors that are not rated for AC drive duty service. Programming the 3G3JX is simple, using the built-in potentiometer and new menu structure.
Features:
Applications:
