Product Details
＋

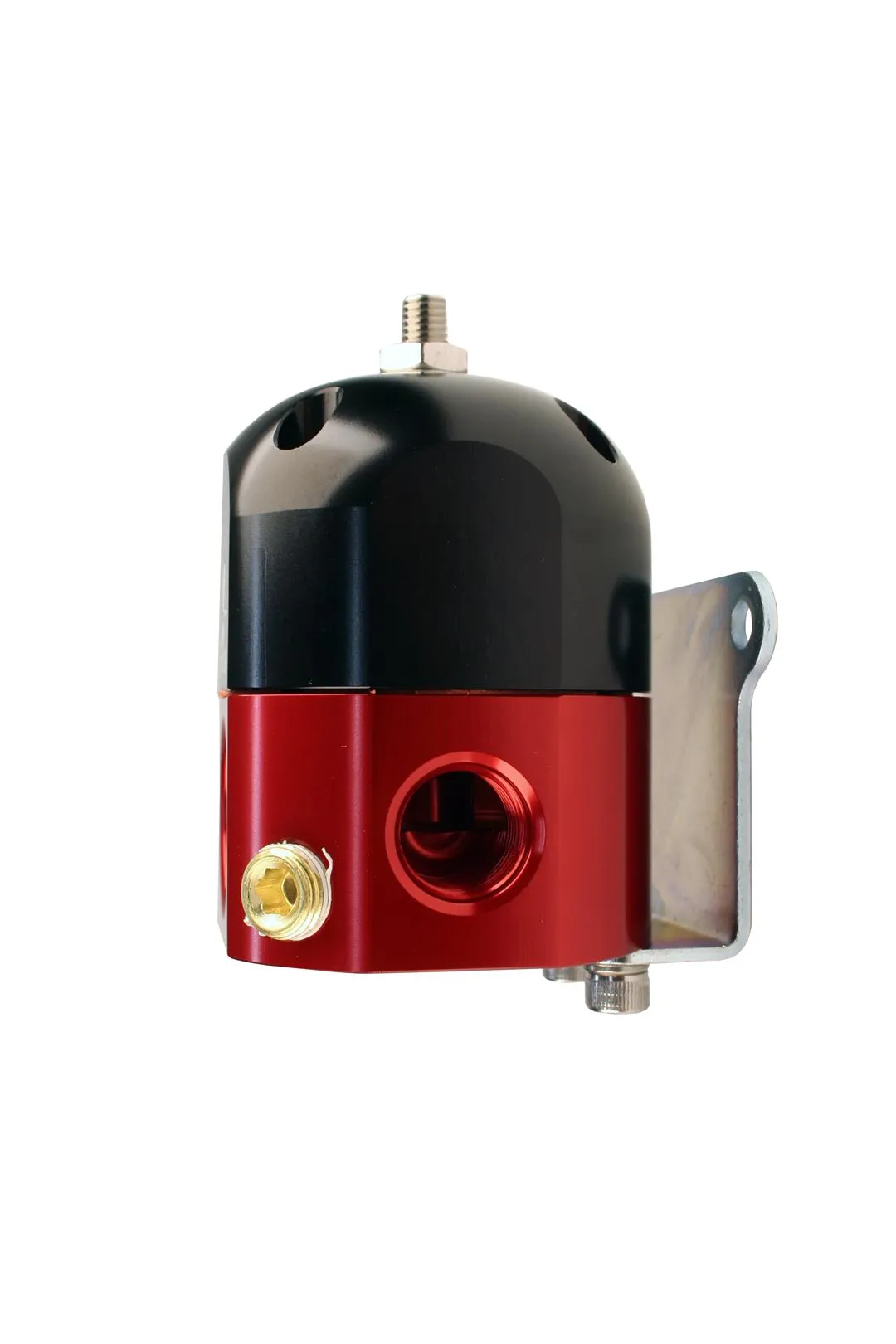

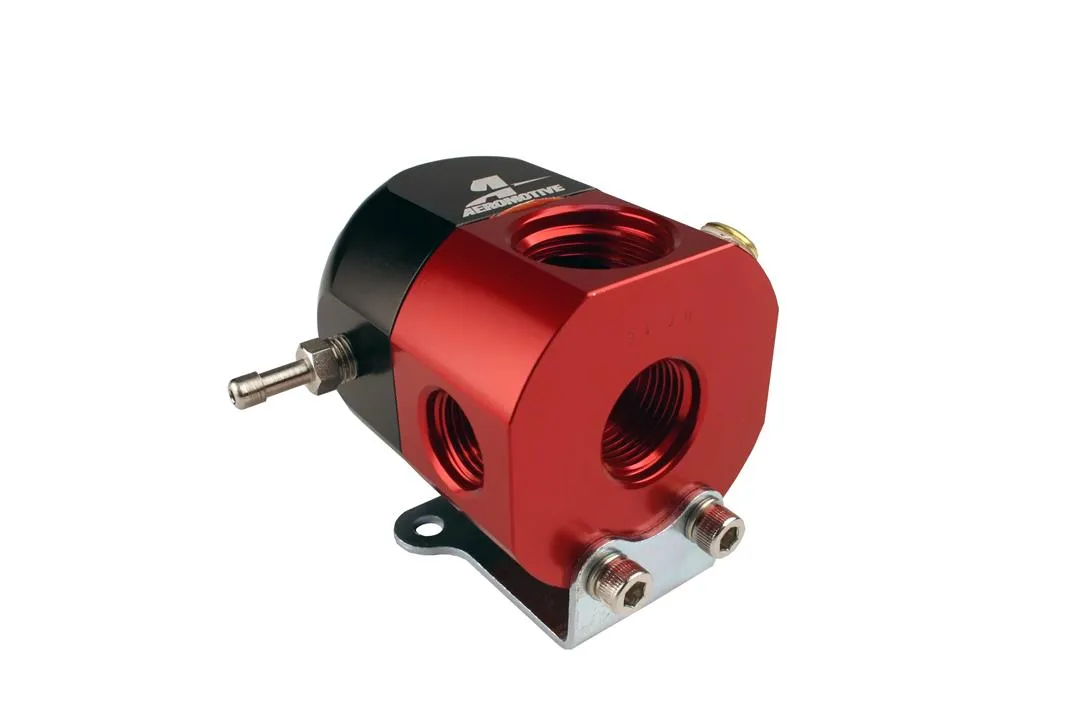

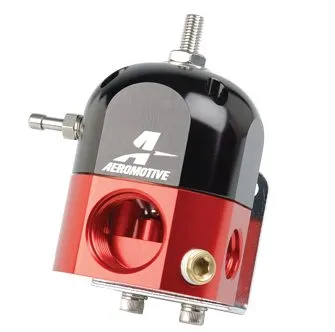

The A1000 Bypass Regulators were designed for use with our A1000 and Eliminator Fuel Pumps or similar-style EFI pumps in a carbureted application. These regulators are perfect for naturally aspirated or "Blow-Through" supercharged engines.
Features & Benefits
- Adjustable Base Pressure From 3 To 15 PSI
- Bypass Design Provides The Ultimate, Dynamic Fuel Pressure Control
- Fuel Pressure Rises On A 1:1 Ratio When Referencing Boost
- O-Ring Boss-06 Outlet Ports And 1/8 Inch NPT Gauge Port
- O-Ring Boss-10 Inlet Ports And O-Ring Boss-08 Return Port
- Ideal For Converting From Fuel Injection To Carburetion Using The Stock, In-Tank Pump
- Electronic Fuel Injection Conversions Will Require A Larger Than Stock Return Line For Proper Low Pressure Control
- Limited Lifetime Structural Warranty; Limited 1 Year Finish Warranty And Limited 1 Year Parts Warranty
Attributes
- Pressure Range (PSI): 3 To 15 Pounds Per Square Inch
- Fuel Type: Gasoline/ Alcohol
- Regulator Location: Inline
- Regulator Type: Return
- Shape: Oval
- Inlet Size: 5/8 Inch (-10 AN)
- Inlet Quantity: 2
- Inlet Attachment: O-Ring Boss
- Outlet Size: 3/8 Inch (-6 AN)
- Outlet Quantity: 2
- Outlet Attachment: O-Ring Boss
- Return Port Size: 1/2 Inch (-8 AN)
- Finish: Anodized
- Color: Black Top And Red Base
- Material: Aluminum
- Gauge Port: Yes
- Includes Fittings: Yes
- Includes Mounting Brackets: Yes
